Model Year
|
2023
|
|

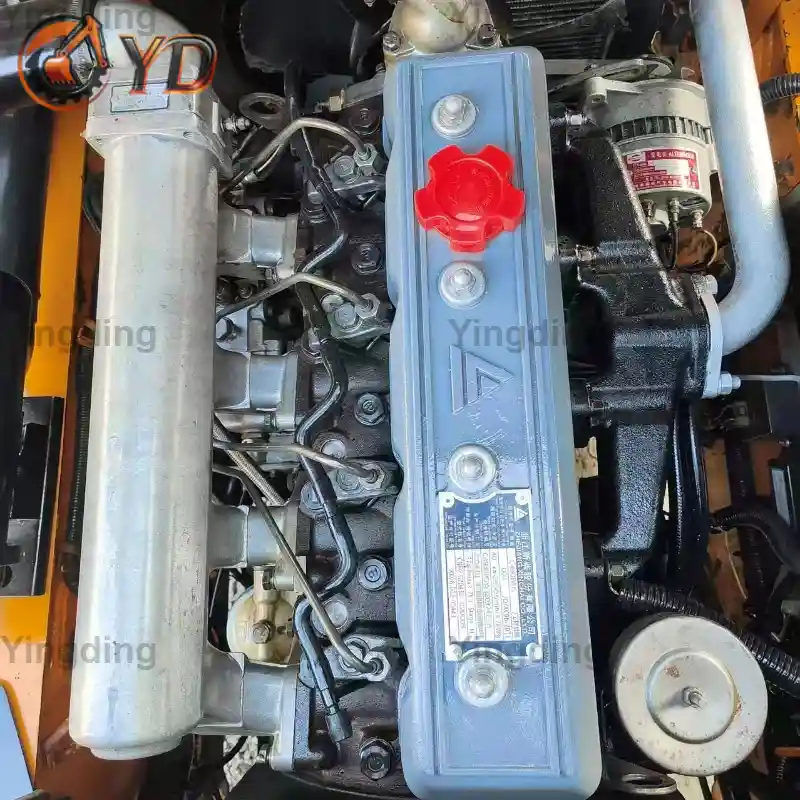

Engine Model (Standard Diesel)
|
Xinchai 4D27G31-007
|
|
Engine Type
|
Inline 4-cylinder, water-cooled, diesel
|
|
Puissance nominale
|
36.8 kW
|
|
Rated Speed
|
2500 rpm
|
|
Déplacement
|
2.67 L
|
|
Emission Standard
|
China National Stage III (GB20891-2014)
|
Powerful Durable Second-hand Hangcha R35 Forklift Good Performance Mining Equipment
Prix FOB : 6,600$ /Unité
-
Économisez de l'argent
-
Bonne réputation
-
Faible nombre d'heures
-
Qualité de la machine
-
Riche variété
Description

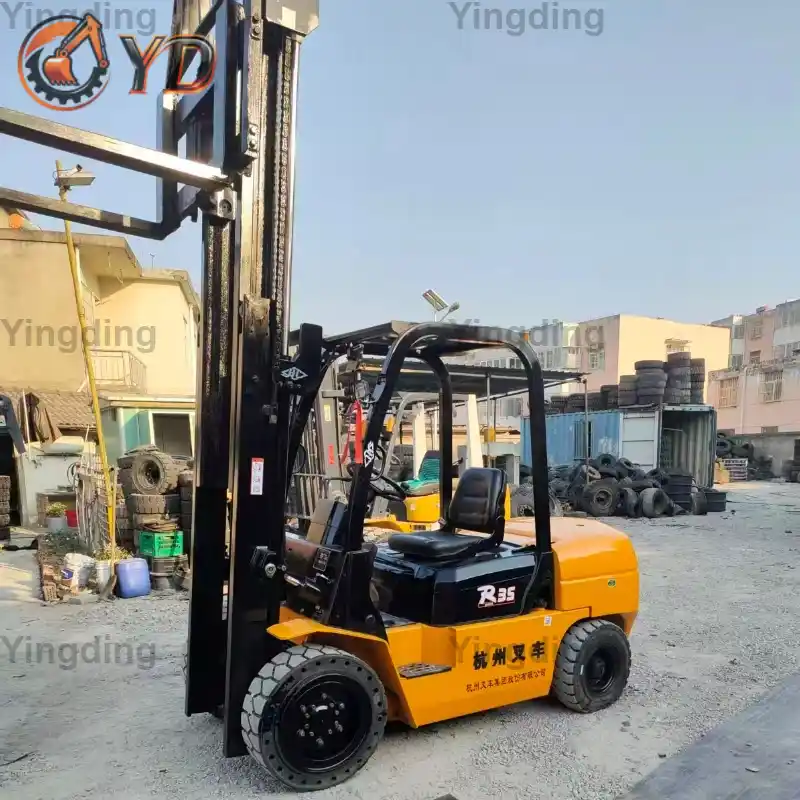

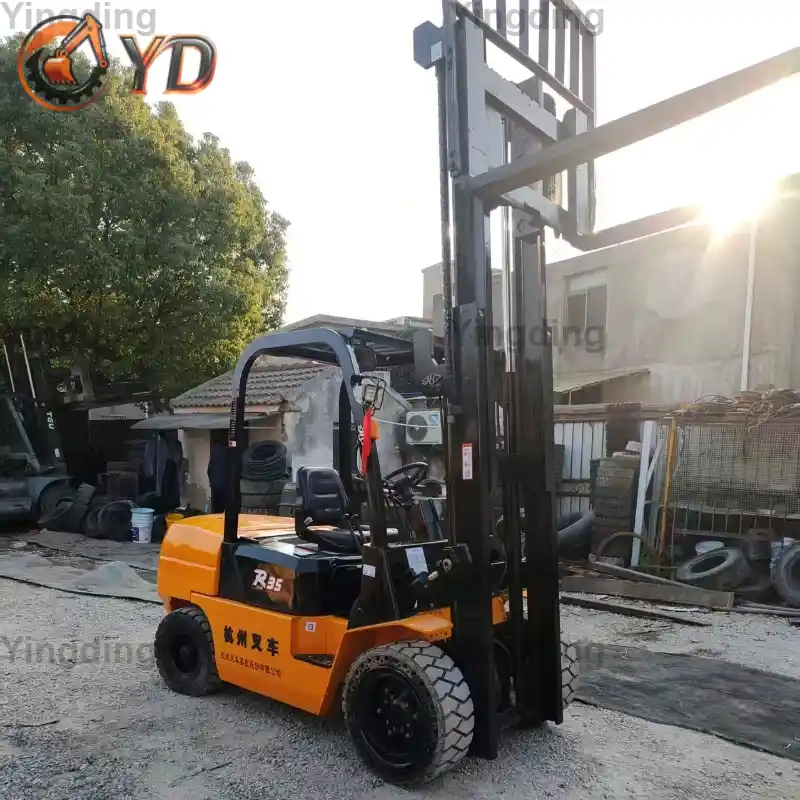

Hangcha Forklift R35, a 3.5-ton high-reliability workhorse, is equipped with a high-performance diesel engine that meets GB20891-2014 Stage III emission standards, delivering excellent power output, paired with a 3000mm standard lifting height, 500mm load center distance, and 2810mm overall length to fork face, offering outstanding efficiency and stable operability for warehouse, logistics and construction material handling tasks!
| Modèle de moteur | CPCD35N-R (R35) |
| Rated Load Capacity | 3500 kg |
| Load Center Distance | 500 mm |
| Standard Lifting Height | 3000 mm |
| Free Lifting Height | 150 mm |
| Mast Tilt Angle (Forward/Backward) | 6° / 12° |
| Minimum Turning Radius | 2400 mm |
| Travel Speed (Unloaded) | 20.5 km/h |
| Lifting Speed (Loaded) | 460 mm/s |
| Overall Length (to fork face) | 2810 mm |
| Overall Width | 1225 mm |
| Overall Height (standard mast) | 2150 mm |
| Wheelbase | 1760 mm |
| Front Track | 970 mm |
| Rear Track | 970 mm |
| Ground Clearance (drive axle) | 120 mm |
| Fork Dimensions (L×W×T) | 1070×125×50 mm |
| Poids opérationnel | 4550 kg |
| Service Weight | 4550 kg |
| Front Axle Load (Unloaded) | 2950 kg |
| Rear Axle Load (Unloaded) | 1600 kg |
| Transport Length (without forks) | 3830 mm |
| Transport Width | 1225 mm |
| Transport Height (overhead guard) | 2150 mm |
| Shipping Weight | 4600 kg |
Q: What working scenarios is the Hangcha R35 suitable for?
A: It is primarily designed for warehousing logistics, factory material handling, and light construction site loading/unloading tasks, where a balance of load capacity, maneuverability, and operational cost efficiency is required.
Q: How fuel-efficient is the Hangcha R35?
A: The Hangcha R35 is powered by an Isuzu diesel engine with optimized fuel injection technology. Compared to similar models, it typically reduces fuel consumption by 12%–15% while maintaining consistent handling performance.
Q: What pain points does the Hangcha R35 solve in different scenarios?
(1) Warehouse & Logistics Handling
- Space Maneuverability: Its compact body design and small turning radius (≤2.5m) solve the pain point of operating in narrow warehouse aisles, enabling flexible turning and stacking.
- Loading Stability: The long wheelbase and counterweight design address the risk of tipping when handling heavy loads at height, ensuring safe stacking of goods up to 4.5m.
(2) Factory Material Transfer
- Low Maintenance Cost: The engine and hydraulic system use mature, wear-resistant components, reducing the frequency of routine maintenance and downtime.
- Operator Comfort: The ergonomic suspension seat and adjustable steering wheel alleviate operator fatigue during long hours of continuous material movement.
(3) Light Construction Site Operations
- Adaptability to Rough Terrain: Its solid tires and reinforced chassis handle uneven ground on construction sites, avoiding the pain point of tire damage in gravel or muddy conditions.
- Fast Operation Response: The hydraulic lifting system provides smooth and precise control, improving the efficiency of loading and unloading construction materials.
