| Model Year |
2025
|
|
Engine Model
|
Xinchai 498, standard for HELI H2 Series 35 Forklift
|
|
Rated Lifting Capacity
|
3500 kg
|
|
Maximum Lifting Height
|
3000 mm; optional 3700 mm/4500 mm
|
|
Load Center Distance
|
500 mm
|
|
Mast Forward Tilt Angle
|
6 degrees
|
|
Mast Rearward Tilt Angle
|
12 degrees
|
|
Overall Machine Weight
|
4700 kg
|
Durable Factory-new Heli H2 Series 35 Forklift Powerful Construction Machinery Solution
Fob Price: $15,000 /Unit
-
Save money
-
Good reputation
-
Low Hours
-
Machine quality
-
Rich variety
Description

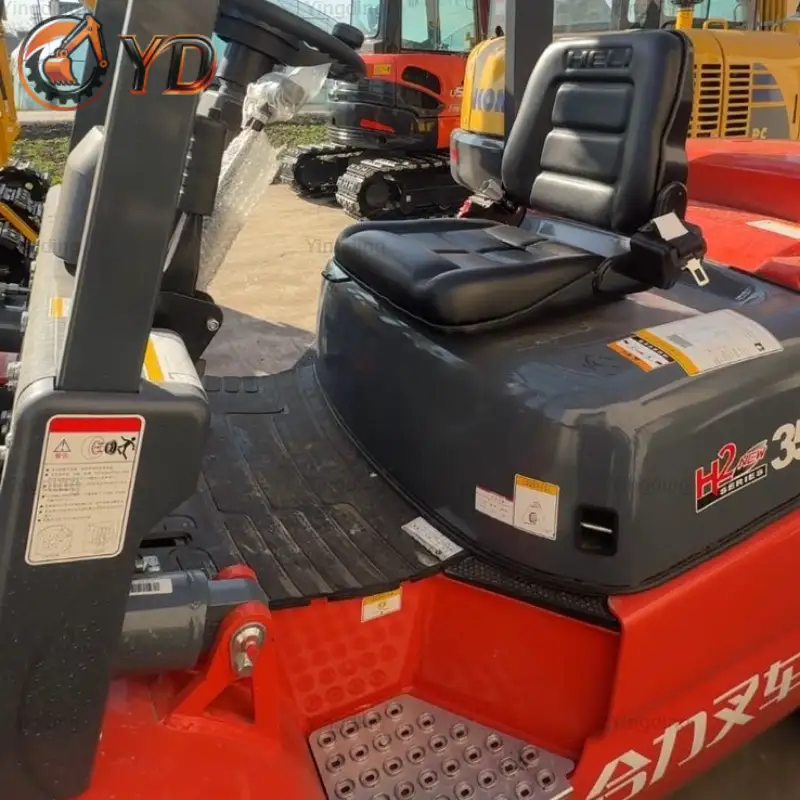

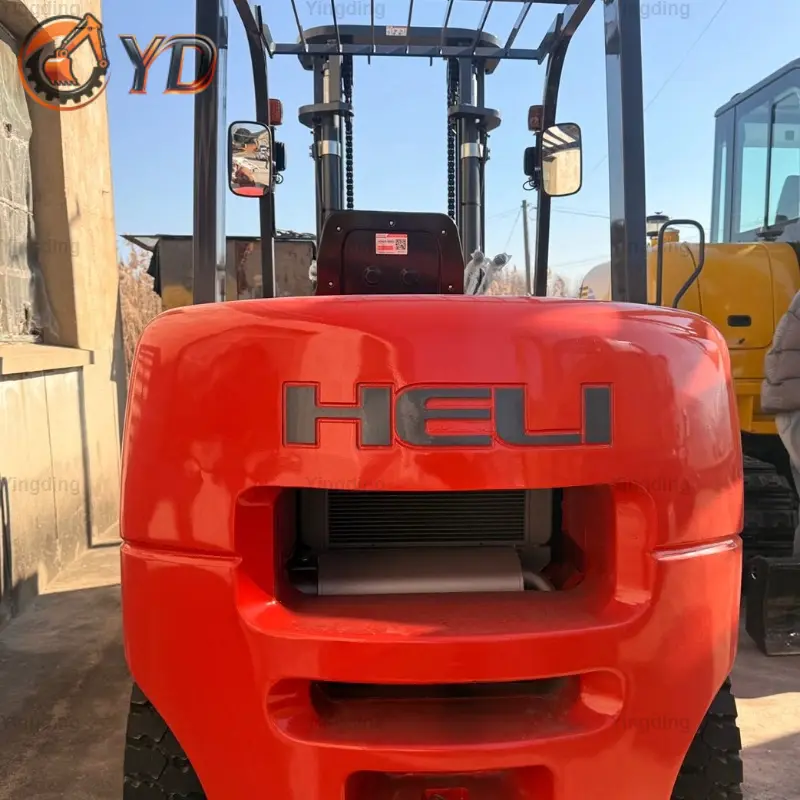

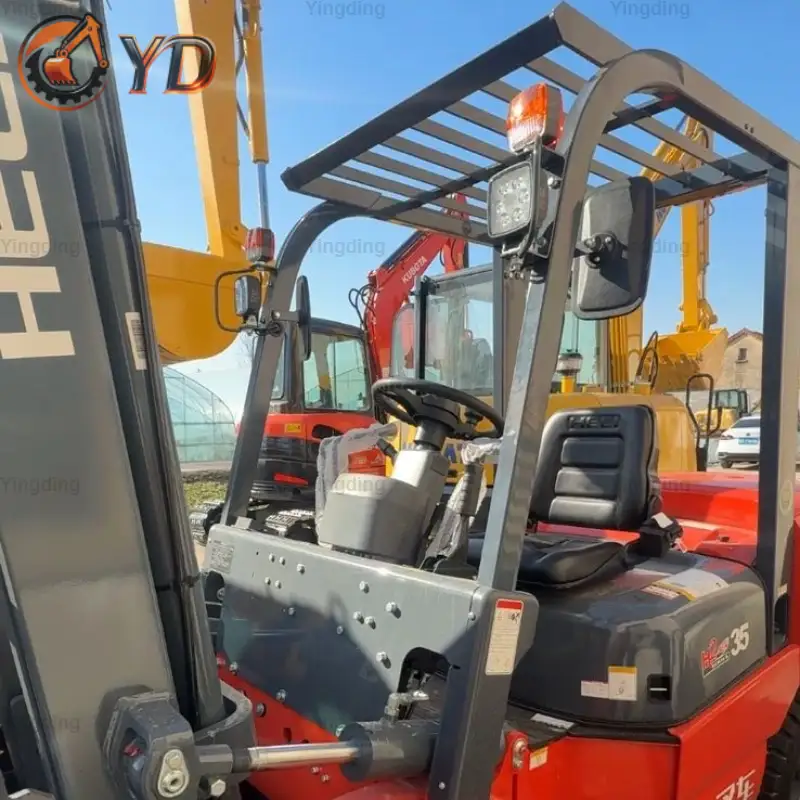

Factory-new Heli H2 Series 35 Forklift,3.5-ton industrial workhorse in pristine working condition! Powered by reliable Nissan H25 engine (42.7kW/2.5L), fuel-sipping efficiency paired with ultra-durable build, perfect for all heavy-duty industrial material handling scenarios!
| Maximum Travel Speed (Unloaded) | 19 km/h |
| Maximum Travel Speed (Loaded) | 18 km/h |
| Minimum Turning Radius | 2420 mm |
| Wheelbase | 1700 mm |
| Overall Width | 1225 mm |
| Overall Height (Mast Lowered) | 2180 mm |
| Height to Top of Overhead Guard | 2090 mm |
| Ground Clearance | 135 mm |
| Length to Fork Face | 2713 mm |
| Front Tire Type | Solid tire |
| Rear Tire Specification | 6.50 – 10 – 10PR |
| Front Wheel Track | 1000 mm |
| Rear Wheel Track | 970 mm |

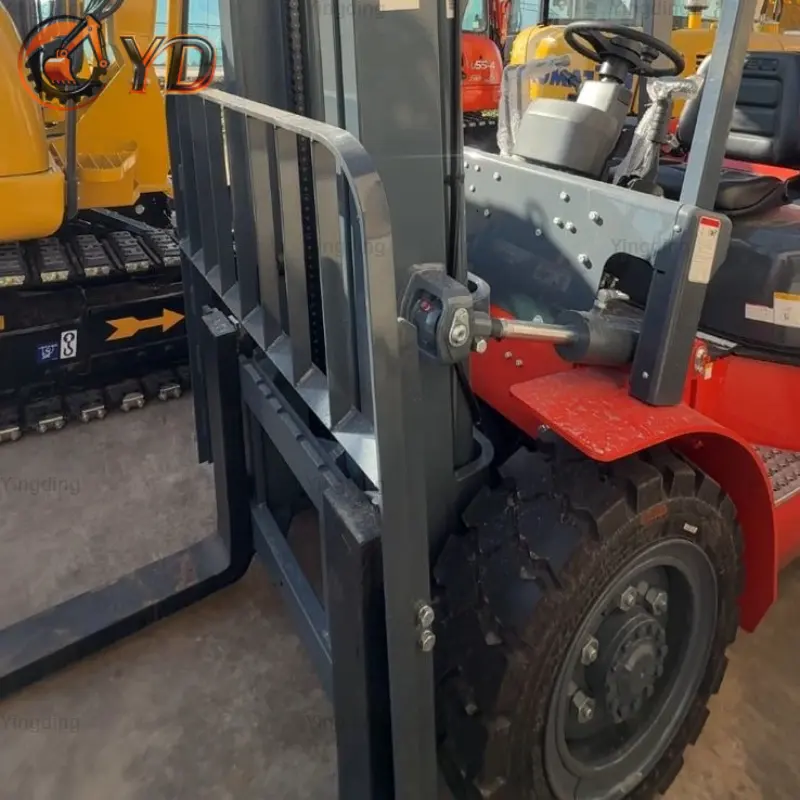

| Fork Configuration | Optional width-adjustable spreader & widened carriage |
| Transport Length | 3769 mm |
| Transport Width | 1225 mm |
| Transport Height | 2090 mm |
