| Modell | 2024 |

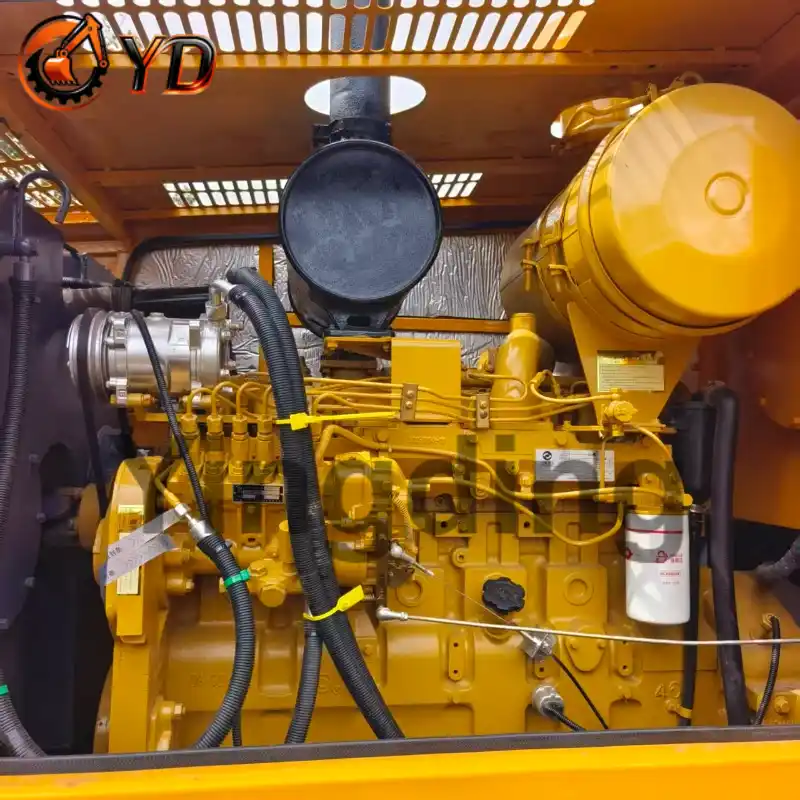

| Motormodell | Cummins QSB6.7 |
| Nennleistung | 164000 W (164 kW, at 2000 rpm) |
| Kraftstofftankkapazität | 280 L (Original volume unit retained as no direct conversion to kg/mm exists) |
| Engine Oil Capacity | 24 L (Original volume unit retained as no direct conversion to kg/mm exists) |

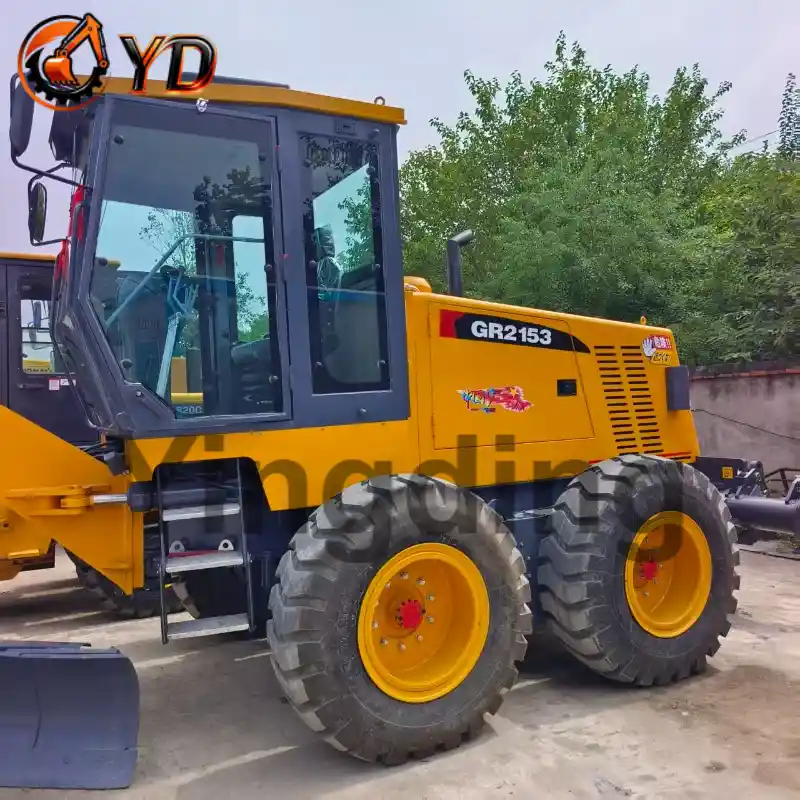

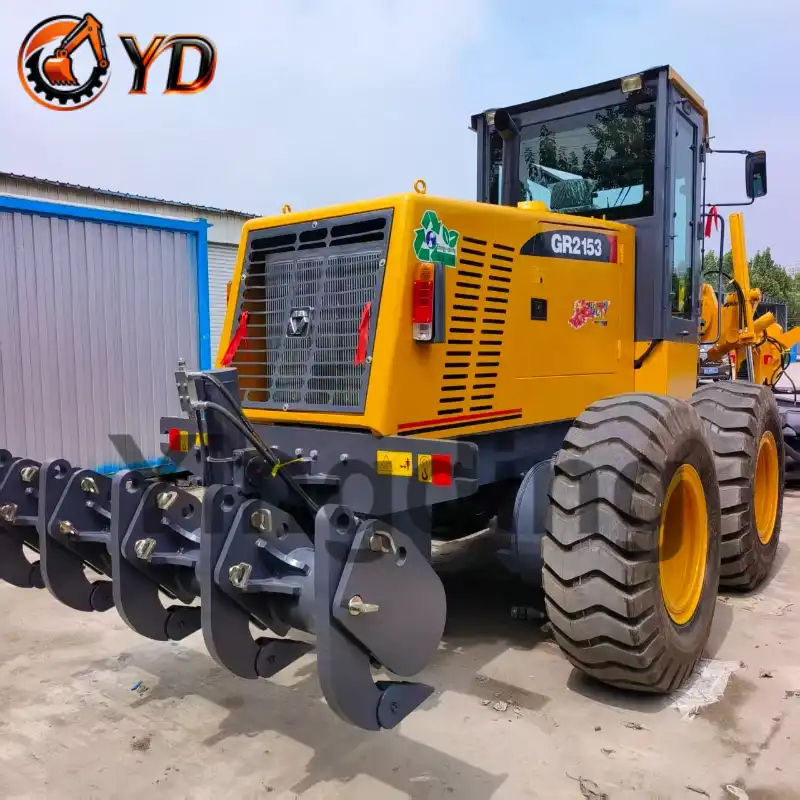

Gebrauchter XCMG GR2153 Grader in gutem Zustand zum günstigen Preis.
FOB-Preis: $25,000 /Einheit
-
Geld sparen
-
Guter Ruf
-
Wenig Betriebsstunden
-
Maschinenqualität
-
Reiche Vielfalt
Beschreibung
1. Kerndaten zur operativen Leistungsfähigkeit
| Standard Operating Weight | 16500 kg |
| Tractive Effort (f=0.75) | 85 kN (Original force unit retained as no direct conversion to kg/mm exists) |
| Maximum Gradeability | 25% (Original percentage unit retained as no direct conversion to kg/mm exists) |
| Working System Pressure | 20 MPa (Original pressure unit retained as no direct conversion to kg/mm exists) |
| Transmission Pressure | 1300 – 1800 kPa (Original pressure unit retained as no direct conversion to kg/mm exists) |
| Forward Speed | 5, 8, 11, 19, 23, 38 km/h (Original speed unit retained as no direct conversion to kg/mm exists) |
| Reverse Speed | 5, 11, 23 km/h (Original speed unit retained as no direct conversion to kg/mm exists) |
2. Wichtigste Daten zu den Gesamtdimensionen
| Overall Dimension (Length×Width×Height) | 8970 mm × 2625 mm × 3420 mm |
| Front and Rear Axle Distance | 6219 mm |
| Middle and Rear Wheel Spacing | 1538 mm |
| Front Axle Ground Clearance | 430 mm |
| Tread | 2156 mm |
3. Key Working Device (Blade) Data
| Blade Length×Chord Height | 4270 mm × 610 mm |
| Maximum Blade Lifting Height | 400 mm |
| Maximum Cutting Depth | 500 mm |
| Maximum Blade Tilt Angle | 90° (Original angle unit retained as no direct conversion to kg/mm exists) |
| Blade Cutting Angle Range | 28° – 70° (Original angle unit retained as no direct conversion to kg/mm exists) |
4. Key Chassis & Steering Related Dimension Data
| Maximum Steering Angle of Front Wheels | ±48° (Original angle unit retained as no direct conversion to kg/mm exists) |
| Maximum Oscillating Angle of Front Axle | ±15° (Original angle unit retained as no direct conversion to kg/mm exists) |
| Maximum Steering Angle of Frame | ±27° (Original angle unit retained as no direct conversion to kg/mm exists) |
| Minimum Turning Radius | 7300 mm |
